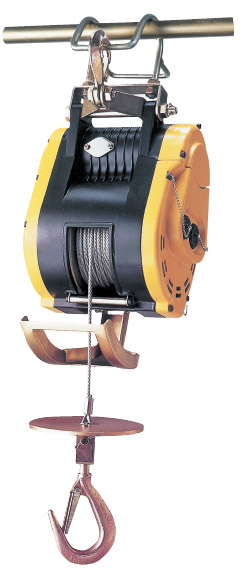

Pacific Compact
Electric Rope Hoists
Capacities: 80kg, 160kg and 230kg
Designed for use on building sites and multi-storey units,
these compact electric rope hoists are also suitable for a
wide range of applications in warehouses, storage areas
and factories.
FEATURES :
- 240 volt single phase operation
- 5 metre power lead included
- Plug-in 10 metre push button
controller
- Fail-safe braking systems

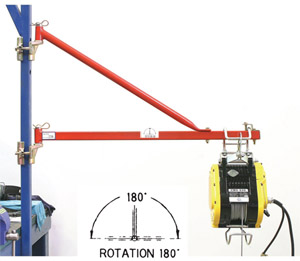

- Optional mounting arm
CRH-0710
- Optional push trolley mount
CRH-0720
- Raised position and reverse
winding limit switch
|
|
| Model |
|
CWS-80 |
CWS-160 |
CWS-230 |
| Rated load | kg | 80 | 160 | 230 |
| Lifting speed | m/min | 30 | 22 | 14 |
| Power supply |
240V IØ 50 Hz |
| Motor | kW | 0.8 | 1.2 | 1.3 |
| Lifting height | m | 35 | 40 | 24 |
| Wire rope | Ømm x m | 3.3 x 36 | 4 x 41 | 5 x 25 |
| Net weight | kg | 9 | 14 | 15 |
| DIMENSIONS (mm) |
| A | 200 | 244 | 244 |
| B | 168 | 182 | 182 |
| C | 605 | 640 | 640 |

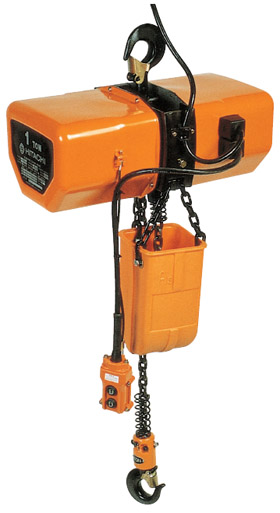

Hitachi Electric Chain Hoists
Capacities: 250kg to 15 tonnes
FEATURES :
- Easy to use remote controls
- Low voltage 24V at push button controls
- Electro-magnetic disc brakes
- Noiseless design chain bucket
- Overload protectio
|
|
Single Phase / Single Speed
| Model |
|
1/4S1 |
1/2S1 |
1S1 |
2S1 |
| Capacity | kg | 250 | 500 | 1000 | 2000 |
| Speed | m/min. | 5 | 3.6 | 2.3 | 1.1 |
| Motor | kW | 0.25 | 0.32 | 0.4 | 0.4 |
| Weight | kg | 33 | 34 | 39 | 51 |
| Headroom | mm | 450 | 450 | 530 | 645 |
|
|
Three Phase / Single Speed
| Model |
|
1/4S |
1/2S |
1S |
2S |
1F |
2F |
3F |
5F |
| Capacity | kg | 250 | 500 | 1000 | 2000 | 1000 | 2000 | 3000 | 5000 |
| Speed | m/min. | 10 | 7.2 | 4.6 | 2.3 | 7.1 | 6.8 | 4.1 | 2.8 |
| Motor | kW | 0.45 | 0.63 | 0.8 | 0.8 | 1.3 | 2.4 | 2.4 | 2.4 |
| Weight | kg | 28 | 31 | 37 | 49 | 42 | 80 | 99 | 121 |
| Headroom | mm | 450 | 450 | 530 | 645 | 535 | 660 | 820 | 1020 |
|
|
Three Phase / Two Speed
| Model |
|
1/4SN |
1/2SN |
1SN |
2SN |
2FN |
3FN |
5FN |
| Capacity | kg | 250 | 500 | 1000 | 2000 | 2000 | 3000 | 5000 |
| 7.2/ | 7.2/ | 4.6/ | 2.3/ | 6.8/ | 4.0/ | 2.8/ |
| Speed | m/min. | 1.8 | 1.8 | 1.2 | 0.6 | 1.7 | 1 | 0.7 |
| 0.32/ | 0.63/ | 0.8/ | 0.8/ | 2.4/ | 2.4/ | 2.4/ |
| Motor | kW | 0.08 | 0.16 | 0.2 | 0.2 | 0.6 | 0.6 | 0.6 |
| Weight | kg | 33 | 36 | 42 | 54 | 96 | 112 | 146 |
| Headroom | mm | 450 | 450 | 530 | 645 | 660 | 820 | 1020 |
|
|
Three Phase / Single and Two Speed Trolleys
| Model |
|
1ET |
2ET |
3ET |
5ET |
| Capacity |
kg |
1000 |
2000 |
3000 |
5000 |
| Travel Speed |
m/min. |
Standard ETS 10.5 |
| Fast ETF 21.0 |
| Two Speed ETN 21.0/ 5.3 |
| Travel Motor |
kW |
0.14 |
0.30 |
| Weight | kg | 38 | 52 | 61 | 86 |
| Standard beam width | mm | 75-125 | 100-150 | 100-150 | 125-175 |
| Min. radius | m | 1.5 | 1.8 | 2 | 3.0 |

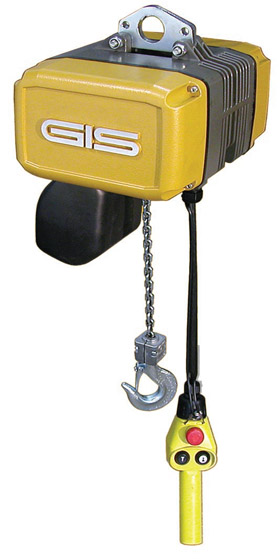

GIS-CH
Electric Chain Hoist
Capacities: 125kg to 5 tonnes
FEATURES :
- Compact design
- Robust construction
- Ease of maintenance
- Availability assured
- Advanced technology
- Swiss quality
- Protection Class IP 55
(Option IP 65)
WORLD'S FIRST IN SAFETY
- Double slip clutch (best overload protection ever)
- Five times more secure than the regulations require
- Highest safety with brake positioned after the slip clutch
- End of chain is fixed to the hoist body
- Standard geared limit switch: chain length to 120m
- Made for industrial use: body and covers completely
built in aluminium
WORLD'S FIRST IN SERVICE AND HANDLING
- Easy adjustment of the slipping clutch
- No special tools or electronic devices required
- Disc brake system maintenance free
- Chain guide removable without disassembly of the hoist
- Easy conversion from 1 to 2 fall (double load capacity)
- Ergonomic 2 and 4 button control pendant with support wire
- Silent working due to helical gears
- Standard low voltage control (42V)
Meets or exceeds all relevant Australian and world standards
| | | | |
