Girder and Plate Clamps

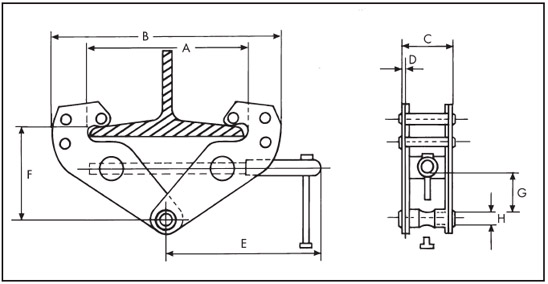

Girder Clamps
Capacities: 1 tonne to 10 tonnes
FEATURES :
- Robust all-steel construction
- Durable baked enamel paint
protection
- Super-quick adjustment to
any girder width in range
- Spare parts always available
| Product Code |
Working Laod Limit |
Adjustable Beam Width |
A |
B |
C |
D |
E |
F |
G |
H |
| max. |
min. |
max. |
max. |
min. |
min. |
| kg |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
| OGC1 | 1000 | 75-230 | 278 | 182 | 380 | 64 | 4 | 217 | 150 | 90 | 26 | 19 |
| OGC2 | 2000 | 75-230 | 278 | 182 | 380 | 74 | 6 | 217 | 150 | 90 | 26 | 21 |
| OGC3 | 3000 | 80-320 | 356 | 220 | 500 | 100 | 8 | 277 | 220 | 145 | 50 | 23 |
| OGC5 | 5000 | 90-320 | 356 | 220 | 500 | 112 | 10 | 277 | 220 | 145 | 47 | 29 |
| OGC10 | 10000 | 90-320 | 356 | 250 | 520 | 120 | 12 | 285 | 230 | 160 | 52 | 39 |
COMPLIES WITH AS4991

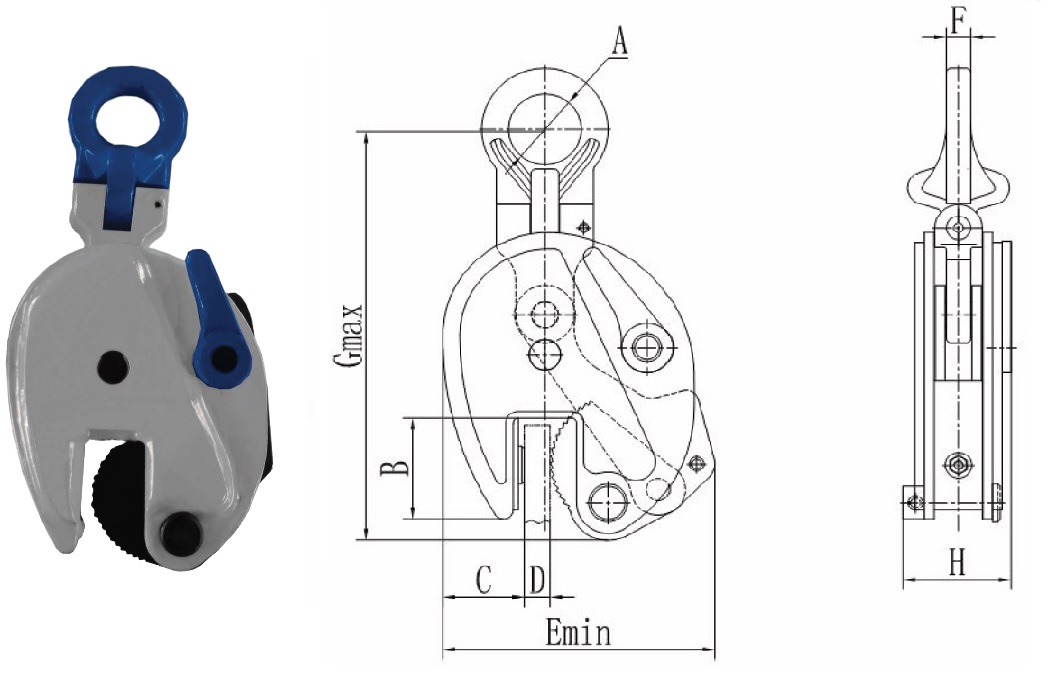

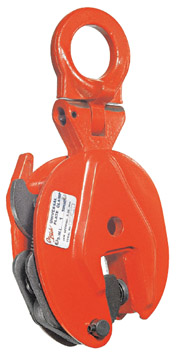

Universal Plate Clamps
Capacities: 500kg to 5 tonnes
FEATURES :
- Strong all-steel construction
- Safety lock
- Wide plate acceptance
Hardened pressure plate and tongue
Durable baked enamel finish
Spare parts available
|
|
| Product Code |
|
OUVPC-05 |
OUVPC-1 |
OUVPC-2 |
OUVPC-3 |
OUVPC-5 |
| Rated capacity |
t |
0.5 |
1 |
2 |
3 |
5 |
| Test Load |
kN |
7.35 |
14.7 |
29.4 |
44.1 |
73.5 |
| Max. Jaw opening |
mm |
15 |
20 |
25 |
30 |
50 |
DIMENSIONS (mm) |
| A | 30 | 48 | 68 | 74 | 80 |
| B | 43 | 63 | 76 | 85 | 90 |
| C | 34.5 | 51 | 59 | 56 | 65 |
| D | 0 - 17 | 0 - 22 | 0 - 27 | 0 - 32 | 0 - 52 |
| E | 103 | 138 | 164 | 193 | 240 |
| F | 10 | 12 | 16 | 20 | 22 |
| G | 212 | 294 | 370 | 418 | 450 |
| H | 36 | 50 | 52 | 78 | 88 |
| Net Weight |
kg |
2 |
4.8 |
6.5 |
15 |
23 |
| Volume |
cm |
23 x 5 x 11.5 |
31 x 7 x 16 |
38 x 8 x 19 |
45 x 11 x 22 |
48 x 14 x 27 |
COMPLIES WITH AS4991

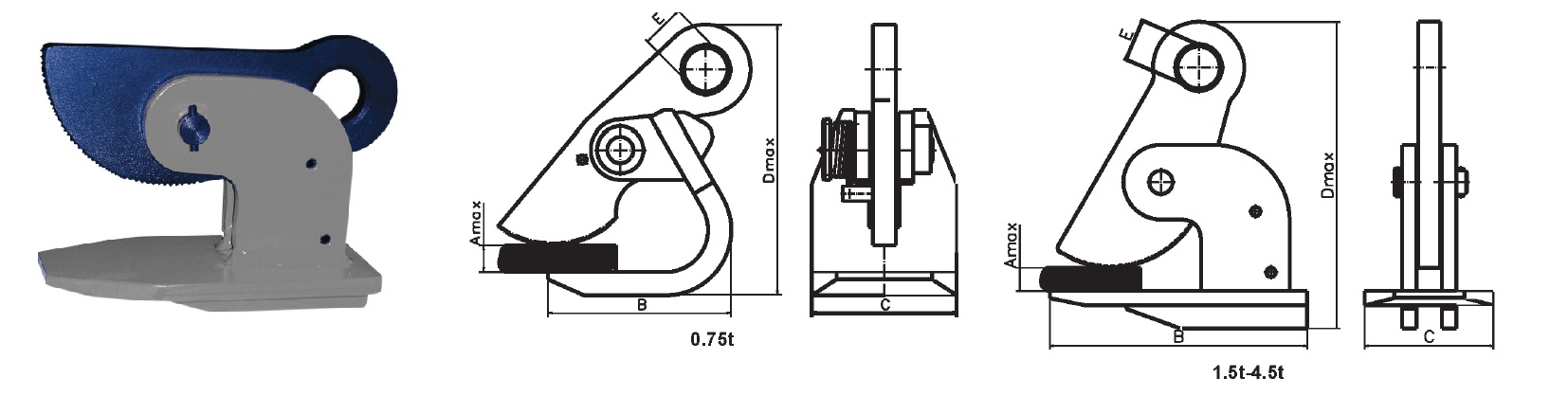

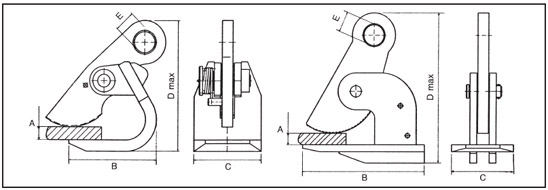

Horizontal Plate Clamps
Capacities: 1.5 tonne to 5 tonnes
FEATURES :
- Compact size and easy to carry
- Lightweight and safe
- Strong all-steel construction
- Durable baked enamel finish
- Spare parts available
|
|
| Product Code |
|
OHPC15 |
OHPC30 |
OHPC50 |
| Rated capacity |
tonnes p/pair |
1.5 |
3 |
5 |
| Test Load |
tonnes p/pair |
3.0 |
6.0 |
10.0 |
| Max. Jaw opening |
|
50 |
50 |
60 |
DIMENSIONS (mm) |
| A | 0 - 52 | 0 - 52 | 0 - 62 |
| B | 127 | 220 | 260 |
| C | 100 | 110 | 130 |
| D max | 218 | 270 | 315 |
| E | f30 | f36 | f49 |
| Net Weight kg |
single |
4.3 |
7.7 |
14.1 |
| pair |
8.6 |
15.4 |
28.2 |
| Volume |
cm |
17 x 12 x 24 |
26 x 13 x 20 |
30 x 15 x 23 |
COMPLIES WITH AS4991
| |
