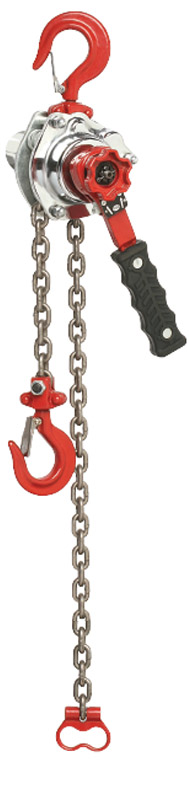

Lever Hoists

Capacities: 250kg and 500kg


FEATURES :

  • Lightweight robust construction
  • Chrome plated covers
  • Super strength alloy loadchain
  • Minimum headroom
  • Fully enclosed gear train
  • Galvanised load chain
  • Minimum effort to lift W.L.L.
  • Spare parts always available


Model OMCB025 OMCB05
W.L.L. tonnes 0.25 0.5
Lift m 1 1.5
Test load t 0.375 0.75
Headroom (hook to hook) H min. mm 215 255
Effort to lift full load. N kg 13 18.5
No. of load chain fall lines 1 1
Load chain (dia. x pitch) mm ø4 x 12 ø5 x 15
CLEARANCE DIMENSIONS (mm)
A 75 90
B 116 135
C 41 51.5
D 157 180
E 18 24
E1 15.5 21
ø 25 32
Net Weight kg 2 3.5
Extra weight per metre of extra lift kg 0.35 0.55

COMPLIES WITH AS/NZS1418.2

Meets or exceeds all relevant world standards

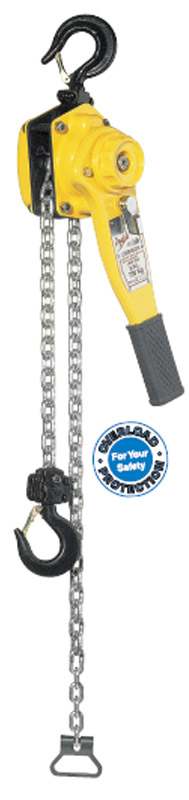

Capacities: 750kg to 6 tonnes



FEATURES :

  • Robust all steel construction
  • Simple Free-wheel operation
  • Super strength alloy loadchain 1.5t, 3t and 6t models fitted with Grade 100 chain
  • Powder coated paint finish
  • Stainless steel name plates
  • Cast steel safety latches
  • Four pocket liftwheel
  • Forged malleable hooks with wide throat opening and deformation indicators


  • Test certificate and instruct
    • ion manual supplied with every hoist
  • Spare parts always available

IMPORTANT FEATURE

  • Minimal pre-load required to activate brake

Capacity Model No. of Chain Load Effort to Net Wt. Extra Wt. Dimensions (mm)
No. Falls dia. Chain Grade Lift Rated with 1.5m. per m
(tonnes) (mm) Load (kg) Lift (kg) (kg) a b c d H
0.75 OMLB075 1 6.3 80 15 6.9 0.85 148 128 37 256 295
1.5 OMLB150 1 7.1 100 18 9.7 1.11 163 148 47 368 335
3 OMLB300 1 9.0 100 38 16.3 1.77 191 181 62 368 405
6 OMLB600 2 9.0 100 39 26.7 3.55 191 244 78 368 550

COMPLIES WITH AS/NZS1418.2

Meets or exceeds all relevant world standards

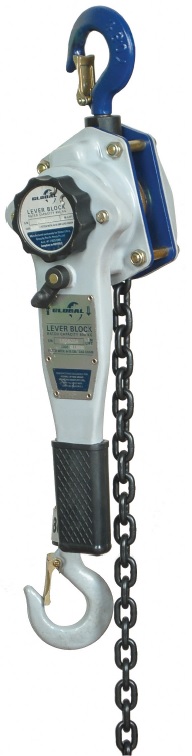

Loadsafe

Lever Hoists

Capacities: 750kg to 9 tonnes


FEATURES :

  • Robust all-steel construction
  • Super strength alloy loadchain
  • Minimum effort to raise maximum load
  • Fully enclosed gear train
  • Weather protected automatic Weston brake
  • Fully machined liftwheel
  • Cast steel safety latches
  • Malleable hook forgings


  • All gears and shafts running on roller bearings or bushes
  • Durable baked enamel paint protection
  • Stainless Steel labels
  • Spare parts always available

Product Code SOLB075LS SOLB150LS SOLB300LS SOLB600LS SOLB900LS
Working Load Limit Tonnes 0.75 1.5 3 6 9
Standard Lift m 1.5 1.5 1.5 1.5 1.5
Test Load kN 11.3 22.5 45 90 135
Headroom H mm 325 380 480 620 700
Effort on lever to lift full load kg 14 22 32 34 36
No. of load chain falls 1 1 1 2 3
Diameter of load chain mm 6 8 10 10 10
Length of lever handle: D mm 280 410 410 410 410

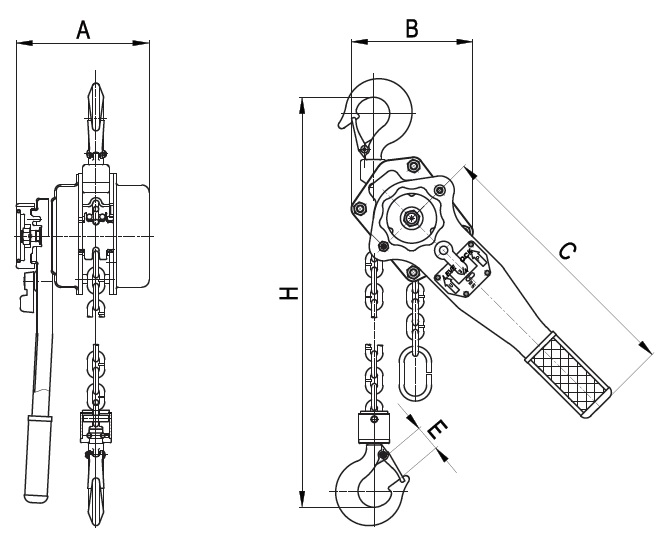

CLEARANCE DIMENSIONS (mm)
A 148 172 200 200 200
B 90 98 115 115 115
C 136 160 180 235 316
E 30 35 40 50 60
Net Weight kg 7 11 21 31 47

COMPLIES WITH AS/NZS1418.2

Meets or exceeds all relevant world standards

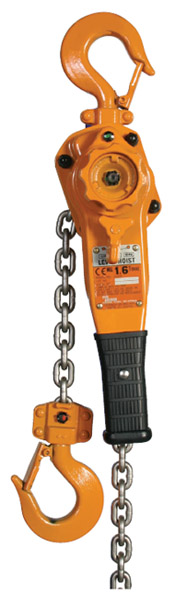

L5 Lever Hoists

Capacities: 800kg to 9 tonnes


TPWB Anchor L5 Lever Hoists are designed for heavy-duty work in the most demanding applications, all models feature a patented 'free-wheel safety brake system' in standard lift heights of 1.5 metres. Optional lift heights and "Overload protection device" also available on request.


Capacity Headroom Lever Length Chain Dia. Chain Falls No. Net Weight
tonnes mm mm mm kg
0.8 280 245 5.6 1 5.7
1.6 335 265 7.1 1 8.0
3.2 305 415 10.0 1 15.0
6.3 540 415 10.0 2 26
9.0 680 415 10.0 3 40.0

COMPLIES WITH AS1418.2

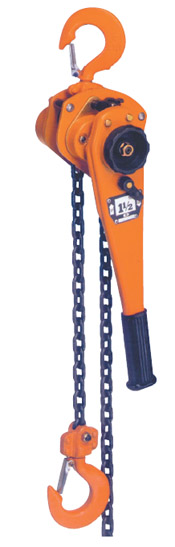

Vital Lever Hoists

Capacities: 250kg to 9 tonnes

An extremely sturdy, highly versatile tool suitable for a multitude of lifting, pulling, tensioning and securing applications.


FEATURES :

  • One touch operation for free chain adjustment
  • Light weight and exceptionally strong
  • Robust all-steel construction ensures safety


  • Used extensively in shipbuilding, coal mining, forestry, power transmission, construction etc.
  • Special underground mining model "VR" available

Model NR2-03 NR2-05 NR2-08 NR2-10 NR2-15 NR2-30 NR2-60 NR2-90
Capacity tonne 0.25 0.5 0.75 1 1.5 3 6 9
Standard Lift m 1.0 1.5 1.5 1.5 1.5 1.5 1.5 1.5
Net Weight kg 1.9 3.5 6.0 7.2 9.8 16.6 27.0 47.3
Headroom C mm 230 260 295 325 350 425 565 680
Pull to Lift Load kg 30 34 21 23 27 38 39 40
Chain Diameter mm 4.0 5.0 5.6 6.3 7.1 9 9 9.0
CLEARANCE DIMENSIONS (mm)
A 85 110 146 146 161 191 191 191
B 65 82 119 126 146 180 243 318
D 150 267 256 256 368 368 368 368
G 24 27 27 30 34 43 47 67

COMPLIES WITH AS/NZS1418.2
