Girder Trolleys
Push type
Capacities: 750kg to 6 tonnes
FEATURES :
- Lightweight robust construction
- Super-quick adjustment to any monorail
- Durable baked enamel paint protection
- Precision ball bearing trolley
wheels
COMPLIES WITH AS/NZS1418.2
|
|
| Product Code |
|
OPT05 |
OPT1 |
OPT2 |
OPT3 |
OPT5 |
OPT10 |
| Rated Capacity |
|
0.5 t |
1 t |
2 t |
3 t |
5 t |
10 t |
| Adjustable Beam Width |
mm |
64-152 |
64-210 |
88-210 |
102-210 |
114-210 |
125-210 |

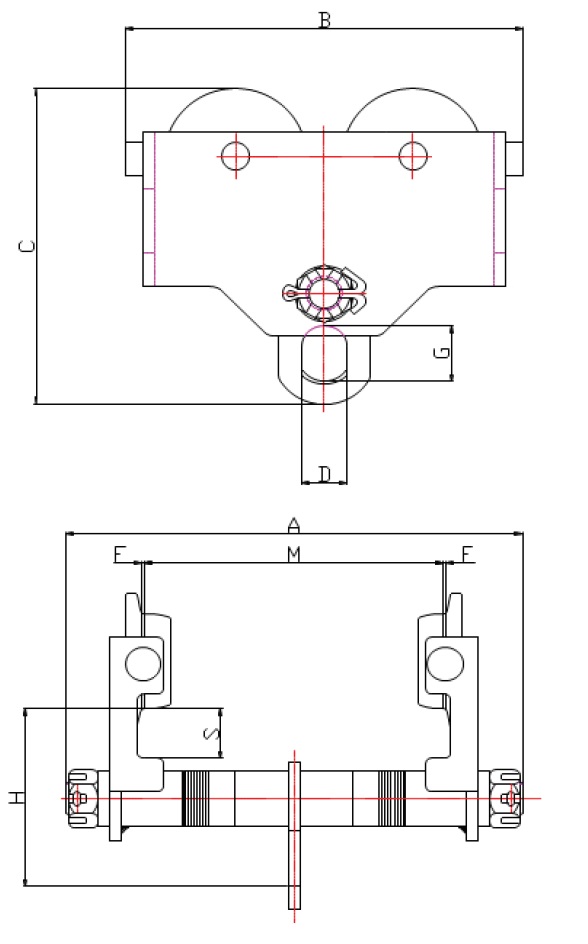

| Clearance DIMENSIONS (mm) |
| A | 254 | 318 | 335 | 357 | 368 | 405 |
| B | 216 | 260 | 300 | 345 | 395 | 455 |
| C | 195 | 239 | 286 | 336 | 393 | 500 |
| H | 110 | 135 | 161 | 185 | 220 | 280 |
| Min. Radius Curve |
m |
.9 |
1.0 |
1.1 |
1.3 |
1.4 |
1.7 |
| Net Weight |
kg |
8 |
14 |
21 |
36 |
51 |
90 |
Geared type
Capacities: 1 tonne to 20 tonnes
FEATURES :
- Lightweight robust construction
- Super-quick adjustment to any monorail
- Durable baked enamel paint protection
- Precision ball bearing trolley
wheels
COMPLIES WITH AS/NZS1418.2
|
|
| Product Code |
|
OPT1 |
OPT2 |
OPT3 |
OPT5 |
OPT10 |
| Rated Capacity |
|
1 t |
2 t |
3 t |
5 t |
10 t |
| Adjustable Beam Width |
mm |
64-210 |
88-210 |
102-210 |
114-210 |
125-210 |

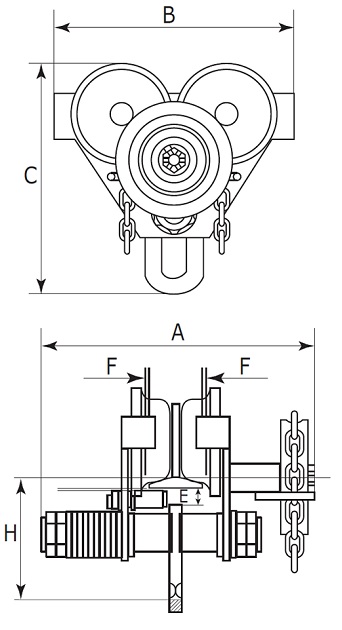

| Clearance DIMENSIONS (mm) |
| A | 380 | 390 | 513 | 430 | 468 |
| B | 260 | 300 | 345 | 395 | 470 |
| C | 239 | 286 | 336 | 393 | 500 |
| H | 135 | 161 | 188 | 220 | 280 |
| Min. Radius Curve |
m |
1.0 |
1.1 |
1.3 |
1.4 |
1.7 |
| Net Weight |
kg |
18 |
27 |
43 |
60 |
105 |
* N.B. Specifictions for 20 tonne SWL available on application.
Girder Trolley Wheels
SINGLE FLANGE PLAIN TYPE
Capacities: 500kg to 10 tonnes
FEATURES :
- Trolley wheels have a machined
thread for smooth operation on
both R.S.J. or Universal beams.
- All Steel construction.
- All wheels come complete with
ball bearing, axle, nut, dust cover
and circlip.
AVAILABLE IN CAST IRON OR
FULLY FORGED
|
|

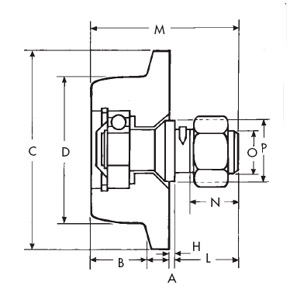

| Oz Blok Produc Code |
Trolley Capacity on 4 wheels |
Wheel dia. |
|
|
|
Axles |
| D |
A |
B |
C |
H. |
L |
M |
N |
O |
P |
| mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
| OTW05 | 500 kg | 58 | 12 | 27 | 82 | 3 | 31 | 72 | 24 | M20 | 32 |
| OTW01 | 1 tonne | 75 | 12 | 28 | 102 | 3 | 33 | 76 | 26 | M20 | 32 |
| OTW02 | 2 tonne | 90 | 13 | 32 | 120 | 3 | 40 | 88 | 29 | M24 | 36 |
| OTW03 | 3 tonne | 110 | 13 | 36 | 141 | 3 | 46 | 99 | 33 | M30 | 42 |
| OTW05 | 5 tonne | 120 | 16 | 38 | 156 | 3 | 58 | 115 | 39 | M36 | 48 |
| OTW010 | 10 tonne | 150 | 20 | 43 | 189 | 3 | 78 | 143 | 54 | M48 | 67 |
* N.B. Specifictions for 20 tonne SWL available on application.
| | |
