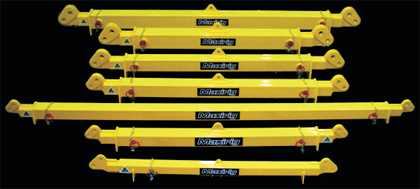

Telescopic Combination Lifting Beam / Spreader Bar
Highly versatile and ideally suited for use by mobile
crane operators, each unit functions as both a
spreader bar in the 60° , 90° and 120° positions with the
TSB1103 through to the TSB1506 also offering centre lift
capability.
- Supplied with a proof load test certificate, MPI welding inspection report and certificate of conformance to AS4991.
- Heavy duty construction.
- Finished in powder-coated safety yellow.
- Australian designed and made.
| Model | Maximum WLL (T) | Length (Mtrs) | Total No.of Positions | Tare(KG) | ||||
| 60° | 90° | 120° | Lift | Open | Closed | |||
| TSB1063 | 6 | 3.5 | 2 | N/A | 3 | 2 | 6 | 55 |
| TSB1103 | 10 | 10 | 7.5 | 2.75 | 3.5 | 2.3 | 4 | 100 |
| TSB1106 | 10 | 10 | 6 | N/A | 6 | 4 | 6 | 160 |
| TSB1204 | 20 | 16 | 9 | 3.5 | 4 | 2.6 | 4 | 150 |
| TSB1304 | 30 | 22 | 12.5 | 3.1 | 4 | 2.8 | 4 | 200 |
| TSB1306 | 30 | 22 | 12.5 | 2.2 | 6 | 4 | 5 | 260 |
| TSB1504 | 50 | 30 | 18 | 6 | 4 | 2.8 | 4 | 260 |
| TSB1506 | 50 | 30 | 18 | 4.2 | 6 | 4 | 5 | 300 |
