Fibre Ropes

Fibre and Synthetic Ropes

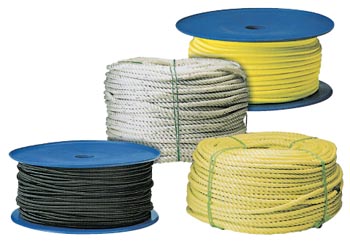

All-Rig carry an extensive range of rope types in both reels and coils to suit all types of applications.

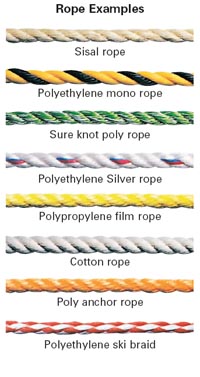

3 Strand Fibre Rope

Available in Sisal or Manila, as well as synthetic fibres including Polypropylene, Nylon, Polyester and Polyethylene.
For rigging, lashing and lifting applications.
Available in many sizes.

The formula to calculate safe working load (of new rope only).

Example:

10mm silver SWL in kg =(10)² x 1.16 = 116kg

Material	Factor
Nylon	2.25
Polyvinyl	1.25
Polyethylene	1.45
Manila	1
Polypropylene	1.6
Polyester	2
Silver	1.16
Sisal	1.0

Rope	Silver	Sisal	Manila
Dia. mm	MBF kN	MBF kN	MBS kN
6	3.69	2.55	2.55
8	6.1	4.73	4.73
10	9.26	6.22	6.22
12	12.4	9.36	9.36
16	20.8	17.7	17.7
20	31	27.9	27.9

Other sizes available on application.
