Commercial Chain
Proof coil chain - self colour or galvanised for general purpose applications
NOT TO BE USED FOR LIFTING
| Approx. Size |
M.W.L. |
| mm |
In Tonnes |
| 3 | 0.07 |
| 4 | 0.10 |
| 5 | 0.20 |
| 6 | 0.30 |
| 8 | 0.50 |
| 10 | 0.80 |
| 13 | 1.50 |
| 16 | 2.30 |
| 20 | 3.67 |
| 24 | 5.34 |
| Approx. Size |
M.W.L. |
| mm |
In Tonnes |
| 6 | 0.30 |
| 8 | 0.50 |
| 10 | 0.80 |
| 13 | 1.50 |
| 16 | 2.30 |
| Approx. Size |
M.W.L. |
| mm |
In Tonnes |
| 5 | 0.20 |
| 6 | 0.30 |
| 8 | 0.50 |
| 10 | 0.80 |

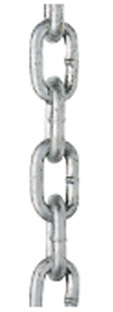

Grade L Anchor Chain
Manufactured in a short link configuration meeting the requirements of Australian Standard
AS2321, Grade L Chain is the highest quality lower tensile steel available for lifting
purposes and recommended for most marine and mooring applications.

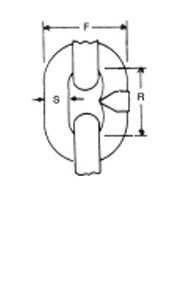

| Chain Size |
W.L.L |
S |
R |
F |
Self-colour |
Galvanised |
| mm |
t |
mm |
mm |
mm |
metres/100kg |
metres/100kg |
| 6 | 0.40 | 6.3 | 18.8 | 21.6 | 116.0 | 110.0 |
| 8 | 0.64 | 8.0 | 23.8 | 27.0 | 71.4 | 67.8 |
| 10 | 1.00 | 10.0 | 29.8 | 34.3 | 45.5 | 43.2 |
| 13 | 1.70 | 12.7 | 38.0 | 43.0 | 29.6 | 27.8 |
| 16 | 2.58 | 16.0 | 47.8 | 54.9 | 17.8 | 17.5 |
| 20 | 4.03 | 20.0 | 59.2 | 68.5 | 11.3 | 11.1 |
| 22 | 5.06 | 22.0 | 64.9 | 77.0 | 9.5 | 9.2 |
