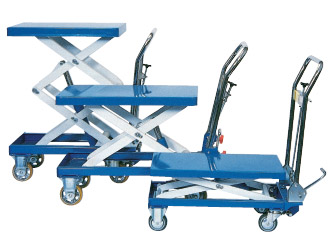

Lifter Trolleys


Lifter Trolleys are the safe and versatile way to transport loads in warehouses, workshops, loading docks, hospitals, libraries, assembly lines, offices and nurseries. Raising heavy loads with the use of hydraulics, helps reduce workplace rated injuries. Available in sizes from150kg up to 800kg.

FEATURES :

  • Single and double scissor lift models for high reach.
  • Castor wheels enable easy positioning in tight spaces.
  • Sealed bearing wheels for durability and cleanliness.
  • Positive braking system on rear wheels for safety.
  • Overload value ensures load limit is not exceeded.
  • Special hydraulic valving ensures loads lower slowly.
  • One-piece table-top for strength and easy cleaning.
  • Handle folds flat for storage on 150kg and 300kg models.






Model mm PH150F PH300F PH500 PH-800 PH-350H PH-500H
Lift capacity kg 150 300 500 800 350 500
Max height of platform mm 750 900 970 1000 1400 1125
Min height of platform mm 220 300 330 355 335 335
Platform size (w x l) mm 450 x 700 500 x 800 500 x 900 550 x 1000 500 x 900 500 x 900
Overall size (w x l) mm 450 x 860 550 x 970 550 x 1070 550 x 1230 550 x 1070 505 x 705
Wheel () mm 100 x 30 130 x 40 130 x 40 150 x 40 150 x 40 130 x 40
Packing weight kg 33 73 90 118 112 91
