Hydraulic Powerteam

Hydraulic Pumps

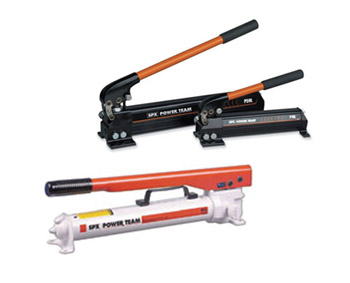

Hand Pumps

Code	Type	Tank	vol/stroke cc
No.		cap	1st	2nd
		cu.cms	stage	stage
P12	Single acting rams	148		1.1
P19		329	5	1.2
P19L		443	4.1	0.9
P55		738		2.6
P59		738	11	2.6
P59L		1082	12	2.6
P157		2245	11	2.6
P159		2245	42	2.6
P300		5080	42	2.6
P460		7540	120	4.6
P59F	Foot Pump	738	9	2.1
P157D	Double acting rams	2245	11	2.6
P159D		2245	42	2.6
P300D		5080	42	2.6
P460D		7540	120	4.6

Quarter Horse Hydraulic Pumps

Inflatable Jacks

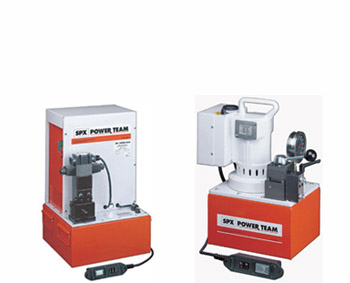

Electric Pumps

Available with Manual or Solenoid valves and remote controls

Code	Type	Tank	flow lit/min
No.		cap	1st	2nd
		litres	stage	stage
PR102	Single acting rams	1	1.9	0.164
PE102-50-220		1	1.9	0.164
PE172-50-220		4.72	3.9	0.2
PE172M-50-220		6	3.9	0.2
PE182-50-220		1.7	3.7	0.3
PE183-2-50-220		8.4	3.7	0.3
PE462-50-220		9.4	6.7	0.6
PE553-50-220		8.4	11.3	0.9
PQ603-50-220		20	9.7	0.8
PQ1203-50-380		20	9.7	1.6
PR104 12VDC	Double acting rams	1	1.9	0.164
PE104-50-220		1	1.9	0.164
PE174-50-220		4.72	3.9	0.2
PE174M-50-220		6	3.9	0.2
PE184-50-220		1.7	3.7	0.3
PE184-2-50-220		8.4	3.7	0.3
PE464-50-220		9.4	6.7	0.6
PE554-50-220		8.4	11.3	0.9
PQ604-50-220		20	9.7	0.8
PQ1204-50-380		20	9.7	1.6
PE4004-50-380		63	16	5.6

MAX PRESSURE

10,000psi/700bar

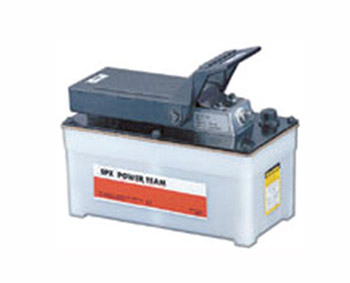

Air Pumps

Code	Type	Tank	flow cc/min
No.		cap	1st	2nd
		cu.cms	stage	stage
PA9 (Foot)	Single acting rams	549	1000	147
PA9H (Hand)		549	1000	148
PA6/PA6M		1600	1200	98
PA6R (remote)		1600	1200	98
PA6M-1		3000	1200	98
PA6-2/PA6M-2		7300	1200	98
PA60		6800	6000	98
PA172/PA172M		4700	4600	300
PA462		9400	7400	700
PA6D/PA6DM	Double acting rams	1600	1200	98
PA6DM-1		3000	1200	98
PA6D-2		7300	1200	98
PA6DM-2		9100	1200	98
PA64		6800	6000	98
PA174		4700	4600	300
PA464		9400	7400	700
PA464R (remote)		9400	7400	700
PA554		8400	7400	900

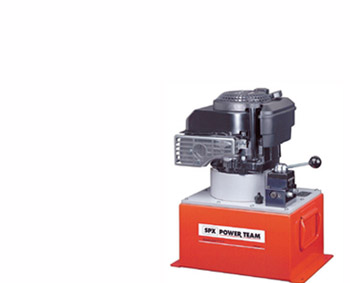

Gasoline Pumps

120 and 400 Series available with solenoid valves

Code	Type	Tank	flow lit/min
No.		cap	1st	2nd
		litres	stage	stage
PG553	Single acting rams	20	7.7	0.9
PG1203		20	7.7	2.1
PG4003		62	17.9	6.4
PG554	Double acting rams	20	7.7	0.9
PG1204		20	7.7	2.1
PG4004		62	17.9	6.4

Gas Engine Hydraulic Pump

Super Grip-O-Matic® Pullers
